Holosun HS507C-X3-RD Red Multi-Reticle Pistol Sight
Red 2 MOA dot, 32 MOA circle, or both. 100,000 hours. Auto brightness.
Holosun’s 2026 update to the 507C: a red 650 nm Multi-Reticle System that switches between a 2 MOA dot, a 32 MOA circle, or both, a new forward-facing light sensor for automatic brightness, Solar Failsafe, Shake Awake and Lockout Mode, in a reinforced 7075-T6 housing on the RMR footprint. 1.55 oz, IP67, side-loading CR1632 rated up to 100,000 hours. Also searched as the Holosun 507C X3, 507C-X3-RD, HS507C X3 RD or 507C X3 Red.
- 2 / 32 MOARed dot / circle
- 100,000 hBattery life
- 1.55 ozWeight
- IP67Waterproof
- Authorized dealerMPN HS507C-X3-RD · New for 2026
- Free shippingCode SWATOPTICS
- WarrantyHolosun limited lifetime warranty
- ReturnsFinal sale · Refund Policy
Three reticles, one zero
- Circle + dotDefault
- 2 MOA dotPrecision
- 32 MOA circleSpeed
The circle reticle carries four positioning points and covers about 32 inches at 100 yards (81 cm at 100 m). Hold “−” three seconds to change reticle; the sight remembers the last one used.
Six things the 507C X3 Red does
-
Multi-Reticle System
Hold the “−” button three seconds to step from circle-plus-dot to dot-only to circle-only. One LED draws all three, so your zero never changes.
-
Solar Failsafe + auto brightness
New on the X3: a forward-facing photodiode reads the target light and sets reticle brightness automatically, while the top solar cell keeps the reticle running if the battery fails.
-
Red Super LED
A 650 nm red emitter, the traditional reflex-sight color, tuned for up to 100,000 hours on a single CR1632 at setting 6.
-
Shake Awake
Motion sensor sleeps the reticle after 10 minutes of stillness (1 h, 12 h or off are selectable) and wakes it the instant the pistol moves, at the last setting.
-
Lockout Mode
Hold “+” three seconds to lock the buttons. A bump in the holster cannot change brightness or reticle until you unlock it.
-
Side-loading CR1632
The battery tray slides out of the side, so a battery change never disturbs your zero. Runs up to 100,000 hours at setting 6.
Dimensions and footprint
- 1.78″Length
- 1.31″Width
- 1.10″Height
RMR-pattern footprint
The 507C X3 uses the industry-standard RMR-pattern footprint, so it mounts directly on slides cut for the Trijicon RMR and on RMR adapter plates. Window is 0.91″ × 0.67″; the optic weighs 1.55 oz with battery.
X3 vs X2 at a glance
Same footprint and controls as the 507C X2; the X3 is a touch wider for the new light sensor and reinforced housing.
| Spec | 507C X3 | 507C X2 |
|---|---|---|
| Auto brightness | Yes — forward-facing light sensor | No (solar assist only) |
| Battery life, setting 6 | 100,000 h | 50,000 h |
| Brightness settings | 8 daylight + 4 NV | 10 daylight + 2 NV |
| Window | 0.91″ × 0.67″ | 0.91″ × 0.63″ |
| Body | 1.78″ × 1.31″ × 1.10″ | 1.78″ × 1.15″ × 1.15″ |
| Weight | 1.55 oz | 1.5 oz |
| Footprint | RMR pattern | RMR pattern |
| Included tool | Multi-tool (T10 + flat tip) | T10 L key |

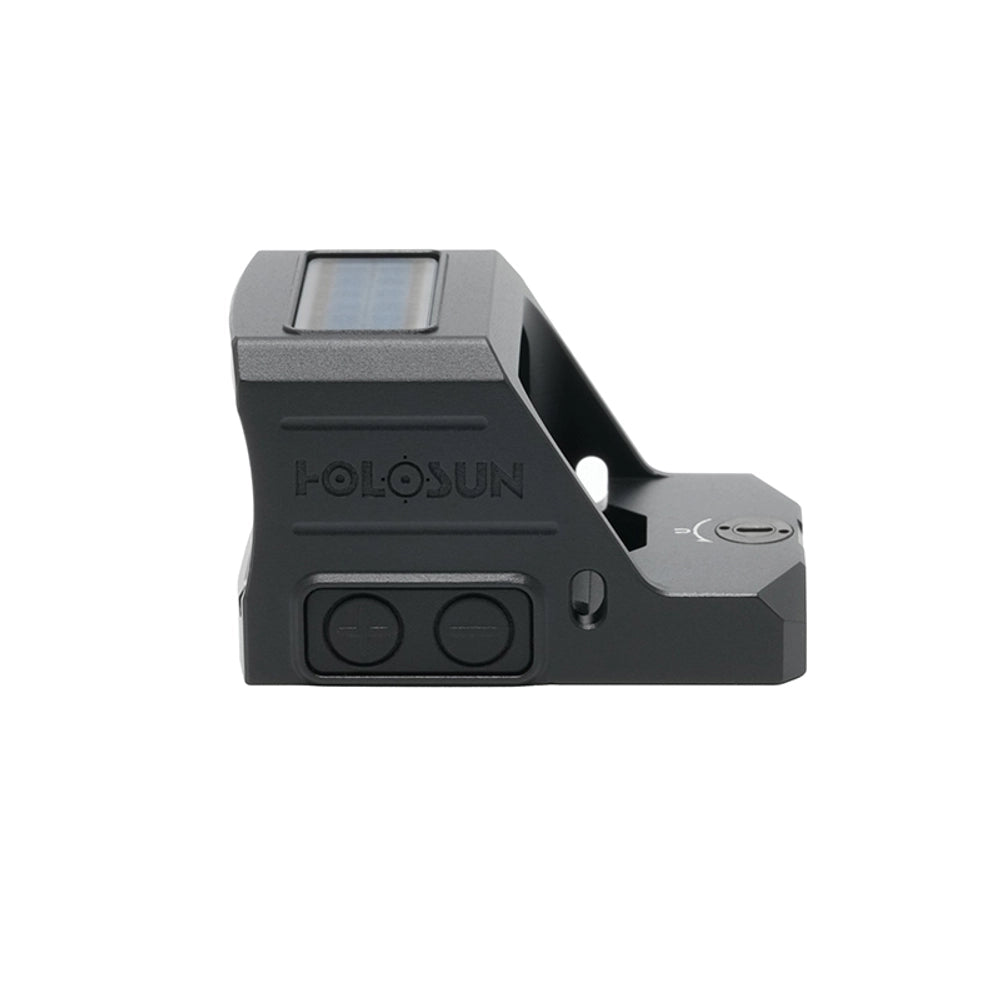

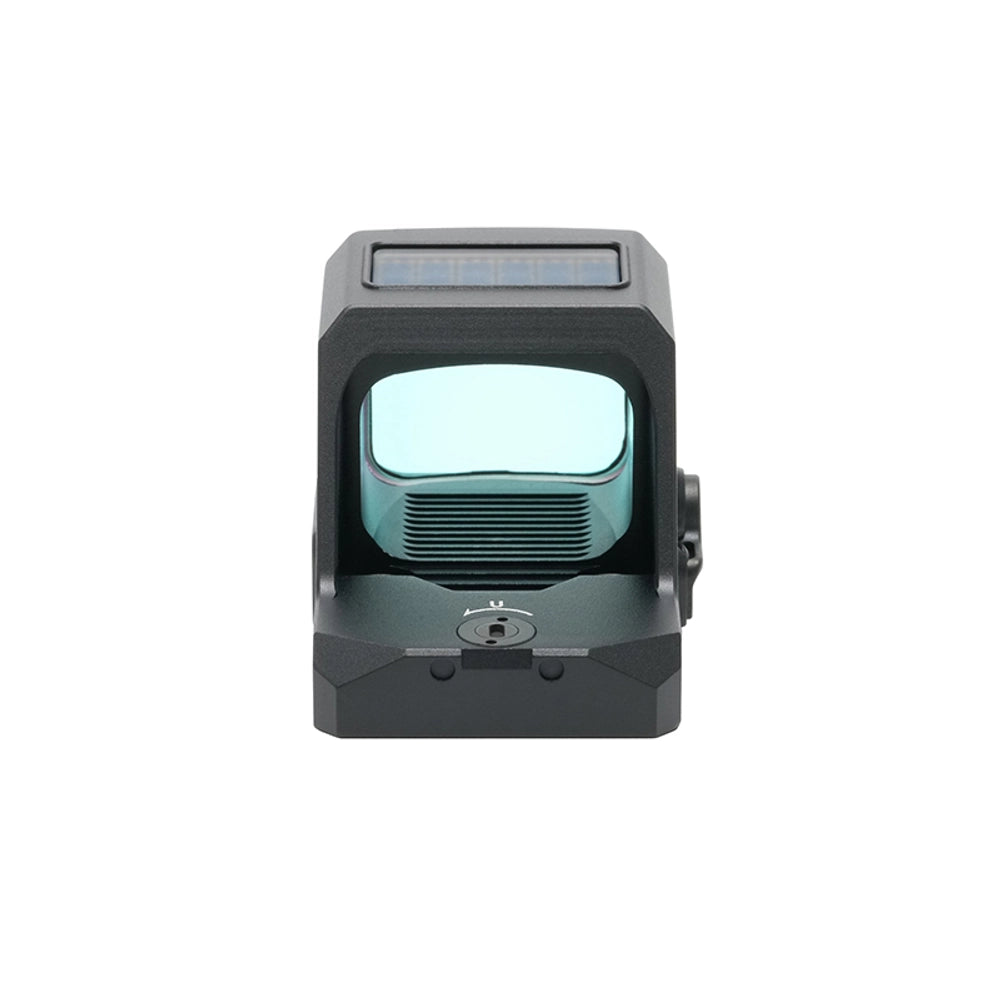

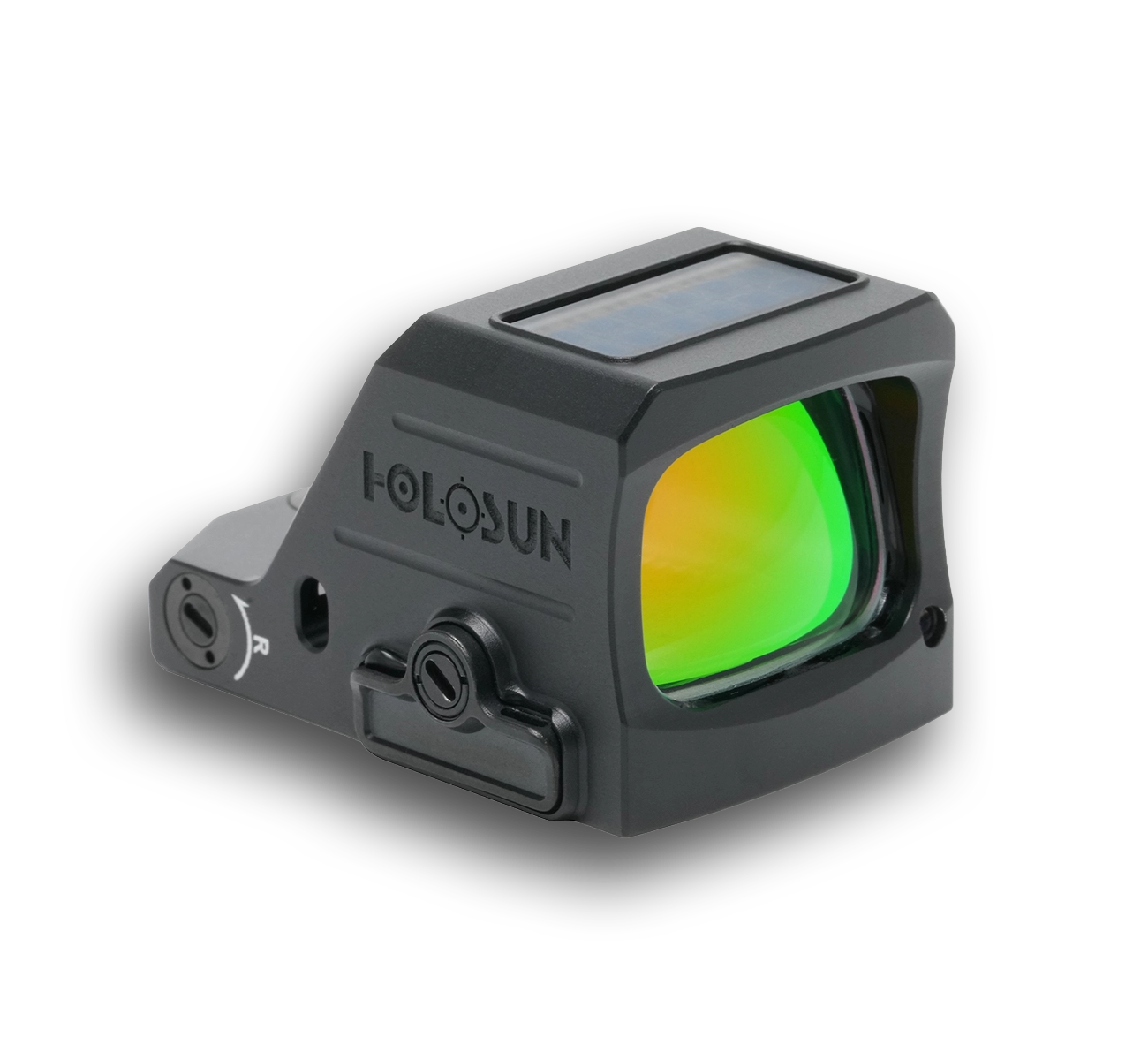

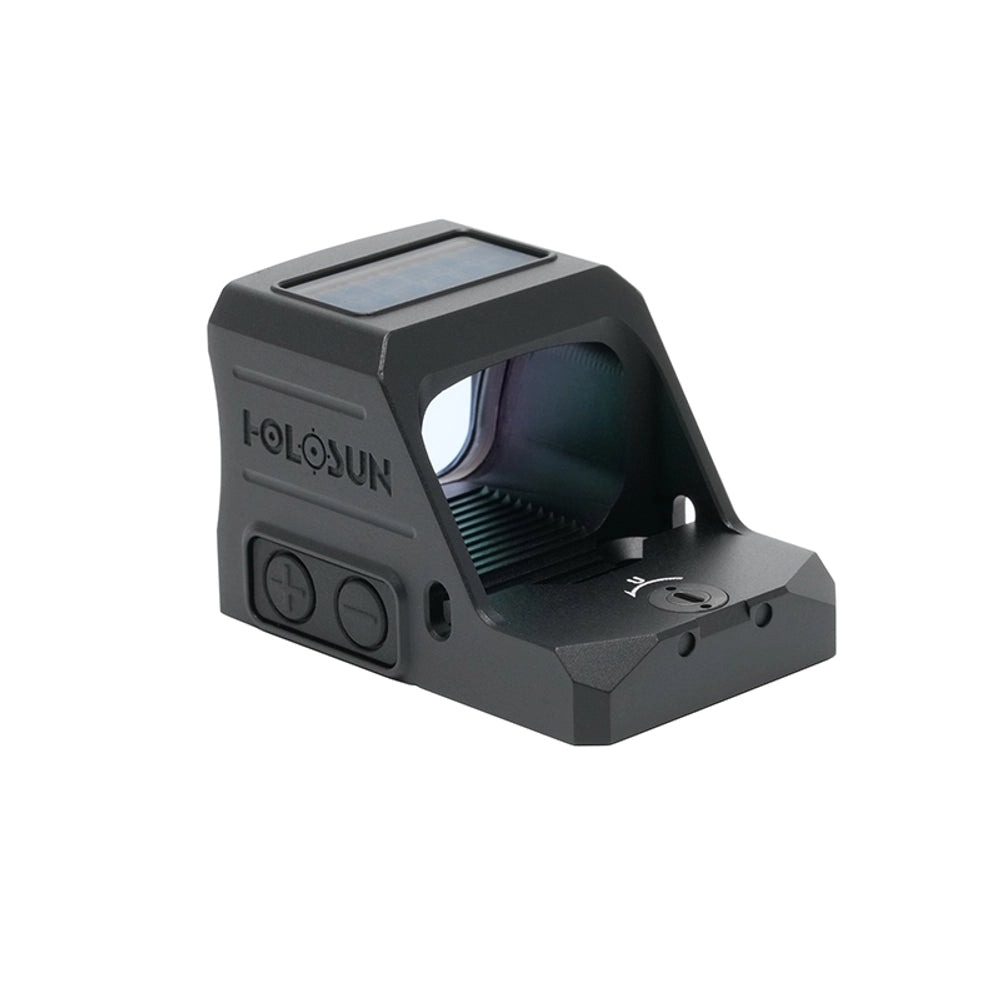

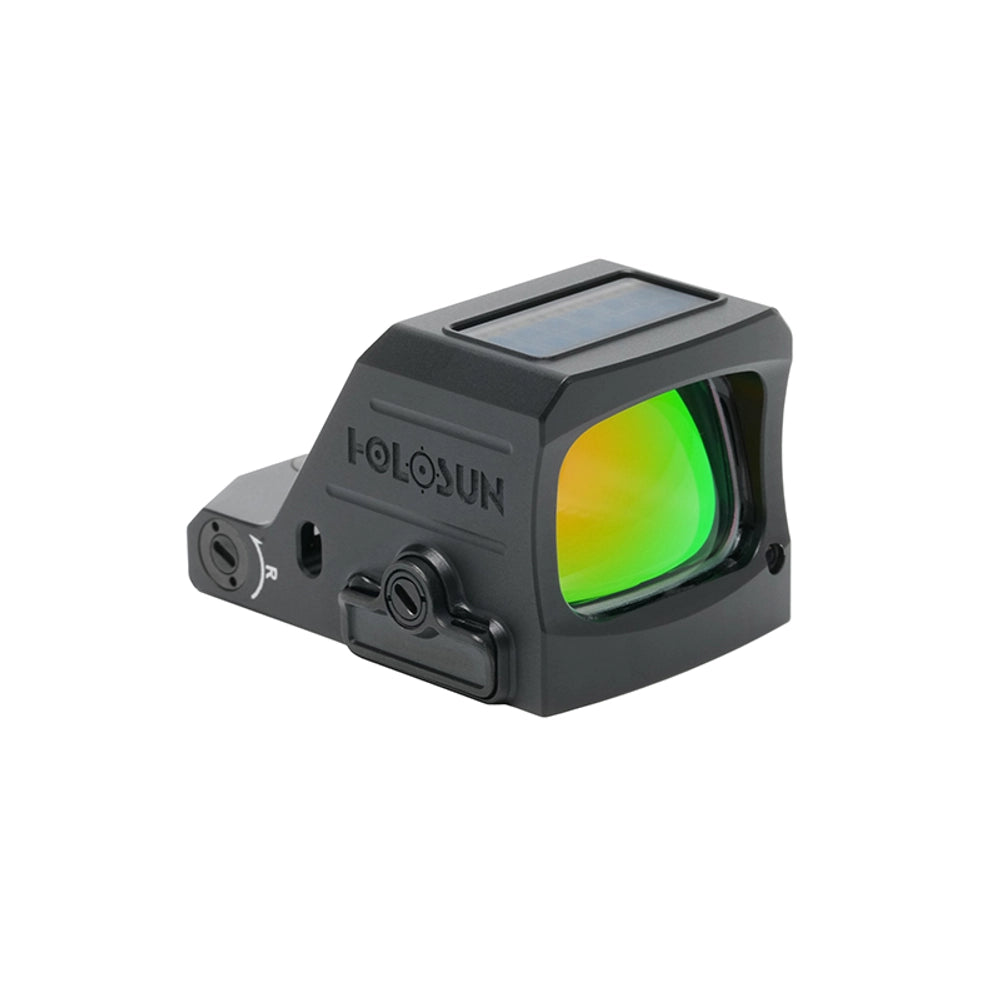

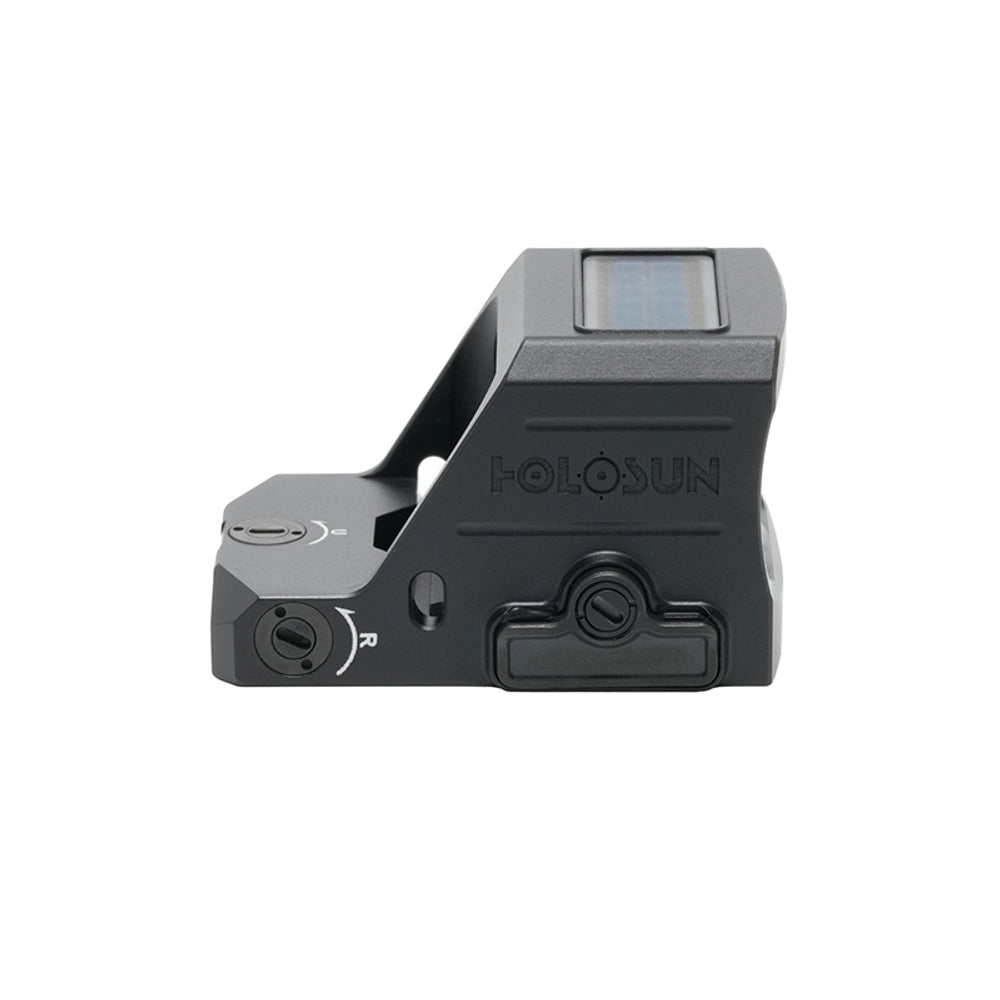

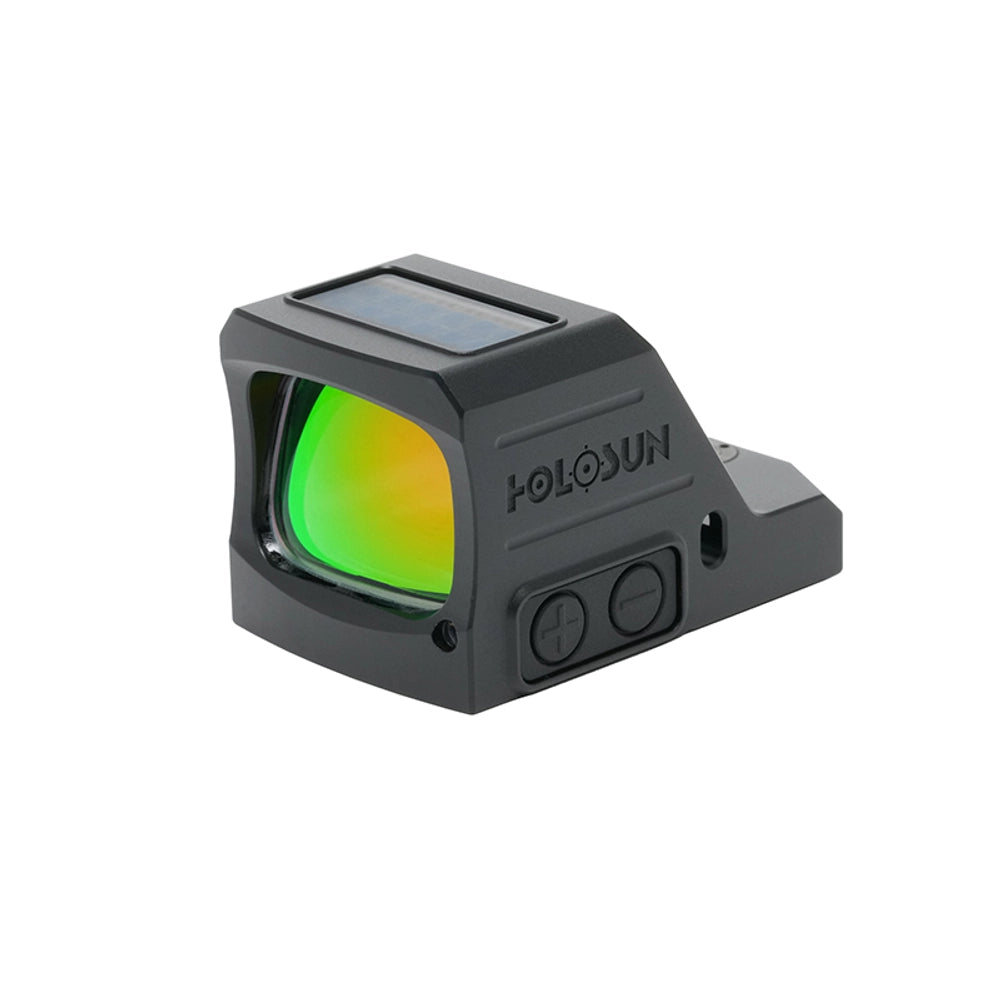

Every angle of the HS507C-X3-RD
Holosun HS507C-X3-RD spec sheet
Optical
- Reticle
- 2 MOA dot & 32 MOA circle (MRS)
- Reticle color
- Red
- Wavelength
- 650 nm
- Magnification
- 1×
- Parallax
- Parallax free
- Eye relief
- Unlimited
- Window
- 0.91″ × 0.67″
- Coatings
- Multi-coated
Electronic
- Power source
- Solar cell & CR1632
- Battery location
- Side tray
- Battery life (setting 6)
- 100,000 h
- Brightness
- 8 daylight & 4 NV · 12 total
- Auto brightness
- Yes, forward-facing light sensor
- Lockout Mode
- Yes
- Shake Awake
- Yes, memory recall
- Auto off
- 10 min / 1 h / 12 h / off
Physical & mechanical
- Body dimensions
- 1.78″ × 1.31″ × 1.10″
- Body weight
- 1.55 oz
- Housing
- 7075-T6 aluminum, hard anodized, black
- Footprint
- RMR pattern, direct mount
- Click value
- 1 MOA
- W&E travel
- ±30 MOA
- Factory zero
- ~25 yards
Environmental
- Submersion
- IP67
- Vibration
- 5,000 G
- Working temp
- −30 to 60 °C
- Storage temp
- −40 to 70 °C
What’s in the box
- HS507C-X3-RD optic
- CR1632 battery
- Multi-tool (T10 Torx + flat tip)
- Mounting screws, 6-32 × 7.5 & 9.5 (4 each)
- Lens cloth & desiccant
- Manual, registration & warranty card
Specifications from Holosun Technologies’ HS507C-X3-RD product page and the 407/507-X3 user manual (PDF). Holosun may update specifications without notice. The same optic with a single 2 MOA dot is the 407C X3.
Holosun 507C X3 Red questions, answered
What is the Holosun HS507C-X3-RD?
The HS507C-X3-RD is the red version of Holosun’s 507C X3, an open-reflex pistol sight with the Multi-Reticle System: a 2 MOA dot, a 32 MOA circle, or both. It mounts on the RMR footprint, runs on a side-loading CR1632 backed by a solar cell, and is rated up to 100,000 hours of battery life at setting 6.
What is new on the Holosun 507C X3 vs the 507C X2?
The X3 adds a forward-facing light sensor for true automatic brightness (the X2 only used its solar cell), a slightly larger 0.91 × 0.67 inch window, a reinforced 7075-T6 housing that is a little wider (1.31 in), and Holosun rates the red and green X3 at up to 100,000 hours versus 50,000 on the X2. Brightness moves to 8 daylight and 4 night-vision settings. Lockout Mode, Shake Awake, the side battery tray and the RMR footprint carry over.
What footprint does the 507C X3 use?
The industry-standard RMR pattern. It mounts directly on slides cut for the Trijicon RMR and on RMR adapter plates. Holosun includes 6-32 screws in two lengths, and recommends 15 in-lb with blue thread locker.
How do I switch reticles on the 507C X3?
Hold the “−” button for about three seconds. The optic steps from circle-plus-dot (the default) to dot only, then circle only. The 32 MOA circle covers roughly 32 inches at 100 yards; the 2 MOA dot covers about 2 inches.
How long does the battery last?
Holosun rates the HS507C-X3-RD at up to 100,000 hours at brightness setting 6 on one CR1632. Shake Awake sleeps the reticle after 10 minutes of stillness, and the solar cell takes over in daylight, so real-world life is usually longer than a battery-only sight. The reticle blinks slowly when the battery runs low.
Is the Holosun 507C X3 night-vision compatible?
Yes. It has 12 manual brightness settings: 8 daylight and 4 night-vision. Settings 1–4 are the night-vision levels.
Red, green or gold — which 507C X3 should I get?
Red (HS507C-X3-RD) is the traditional reflex-sight color and the most affordable of the three. Green (HE507C-X3-GR) sits near the wavelength the eye is most sensitive to and is easier to pick up in bright daylight. Gold (HS507C-X3-GD) is Holosun’s high-contrast option for bright targets and busy backgrounds. All three share the same housing, footprint, battery and Multi-Reticle System.
What is Lockout Mode?
Lockout Mode disables the buttons so a holster or gear bag cannot change your brightness or reticle. From Manual mode, hold “+” for three seconds to lock; hold it again to unlock and return to Auto.
Does changing the battery affect zero?
No. The CR1632 loads from a side tray using the included multi-tool, so the optic stays on the slide and keeps its zero. Holosun recommends 5 in-lb on the tray screw.
Is the 507C X3 waterproof?
Yes. It is IP67 rated, tested to 5,000 G of vibration, and has drain holes on both sides of the housing to shed water. Working range is −30 °C to 60 °C.
